Product Feature:
- High density LED beads
- High CRI, high brightness and high efficiency
- Reach ERP energy efficiency F class
- High temperature resistance, long lifespan
- Can be cut into several parts according to the units of the strips and easy to bend
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Type | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous
Efficacy | Luminance
Flux | Beam
Angle | Width | Min.
Cutting |
|---|
| MS-L283530-120-9.6W-12V-08F0-80 | SMD 2835 | 120 | 12V | 9.6W | ≤5 | 80 | 3000K | 90lm/W | 860lm | 120° | 8mm | 25mm |
| MS-L283540-120-9.6W-12V-08F0-80 | SMD 2835 | 120 | 12V | 9.6W | ≤5 | 80 | 4000K | 95lm/W | 910lm | 120° | 8mm | 25mm |
| MS-L283565-120-9.6W-12V-08F0-80 | SMD 2835 | 120 | 12V | 9.6W | ≤5 | 80 | 6500K | 100lm/W | 960lm | 120° | 8mm | 25mm |
| MS-L283530-120-9.6W-24V-08F0-80 | SMD 2835 | 120 | 24V | 9.6W | ≤5 | 80 | 3000K | 90lm/W | 860lm | 120° | 8mm | 50mm |
| MS-L283540-120-9.6W-24V-08F0-80 | SMD 2835 | 120 | 24V | 9.6W | ≤5 | 80 | 4000K | 95lm/W | 910lm | 120° | 8mm | 50mm |
| MS-L283565-120-9.6W-24V-08F0-80 | SMD 2835 | 120 | 24V | 9.6W | ≤5 | 80 | 6500K | 100lm/W | 960lm | 120° | 8mm | 50mm |

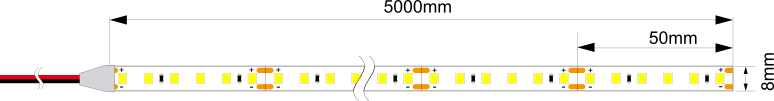

Dimension Drawing:
12V:
24V:
Available Waterproof Grade:
IP20, IP44, IP65, IP67, IP68
Related Products

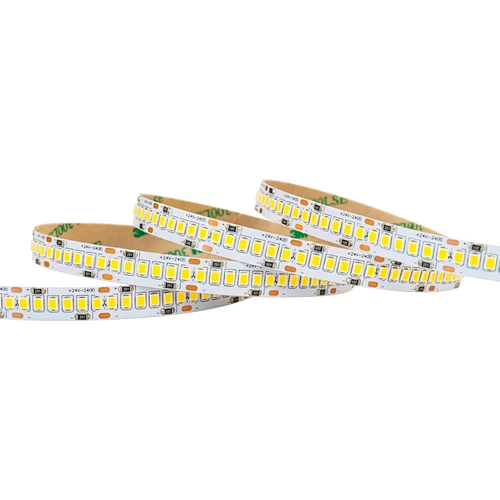

Model NO. MS-L2835X-240-19.2W-24V-10F0-80
Model NO. MS-L2835X-60-4.8W-12V-08F0-80
Wechat scan code or copy link mobile phone open
X

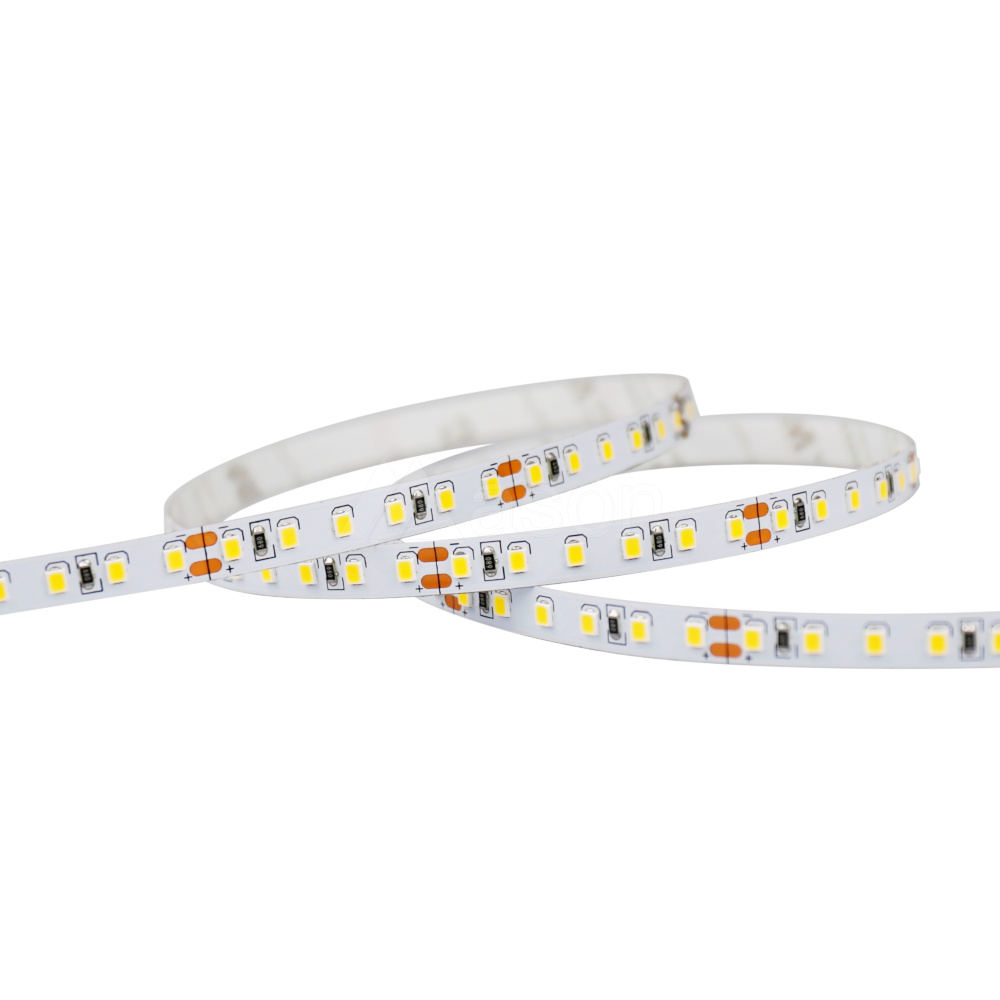

SMD2835 120LED Strip Light
