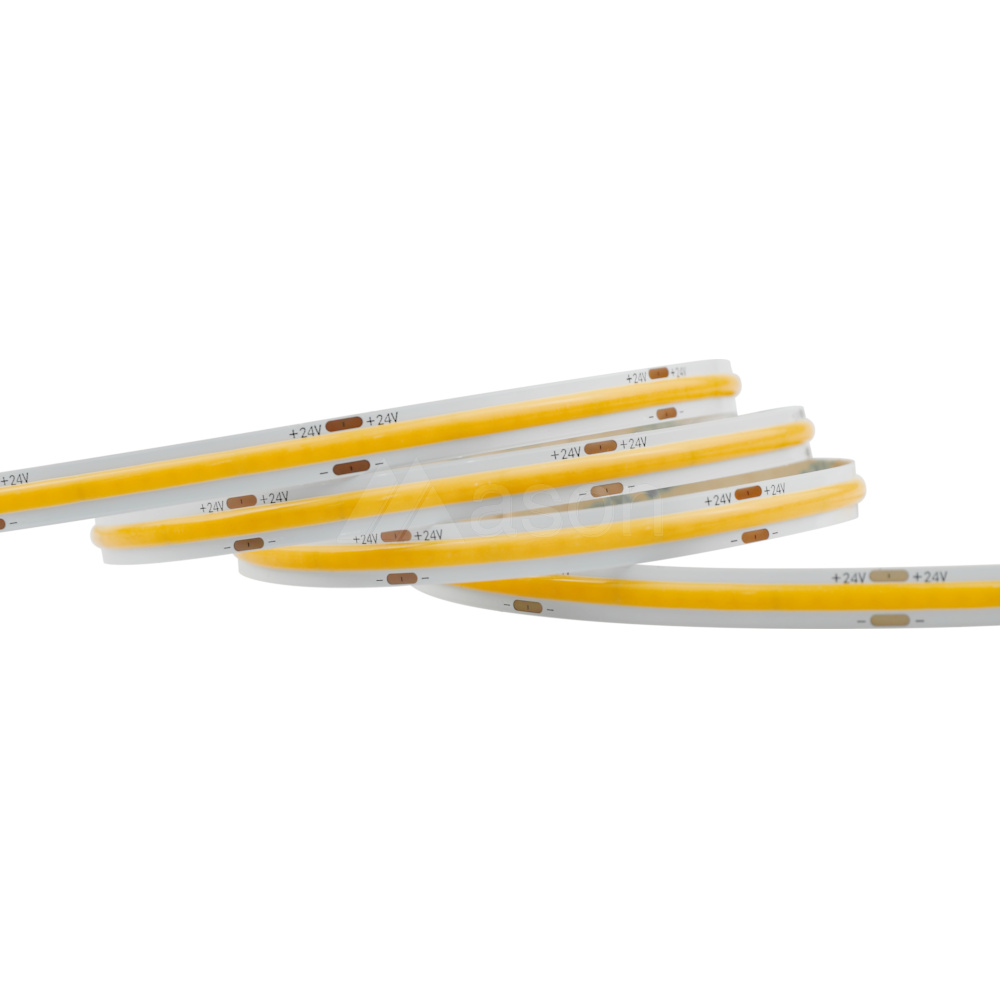

Product Feature:
- High density COB LEDs
- Linear lighting, without light spot, soft and uniform luminance
- High CRI, high brightness and high efficiency
- Reach ERP energy efficiency F class
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification:
All data are based on 1 meter IP20 strip| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Beam Angle | PCB Layer | Width | Min. Cutting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-LCOB30-480-12W-12V-08F0-90 | 480 | 12V | 12W | ≤3 | ≥90 | 3000K | 80lm/W | 960lm | 140° | Double Copper | 8mm | 25mm |
| MS-LCOB40-480-12W-12V-08F0-90 | 480 | 12V | 12W | ≤3 | ≥90 | 4000K | 90lm/W | 1080lm | 140° | Double Copper | 8mm | 25mm |
| MS-LCOB65-480-12W-12V-08F0-90 | 480 | 12V | 12W | ≤3 | ≥90 | 6500K | 95lm/W | 1140lm | 140° | Double Copper | 8mm | 25mm |
| MS-LCOB30-480-12W-24V-08F0-90 | 480 | 24V | 12W | ≤3 | ≥90 | 3000K | 80lm/W | 960lm | 140° | Double Copper | 8mm | 50mm |
| MS-LCOB40-480-12W-24V-08F0-90 | 480 | 24V | 12W | ≤3 | ≥90 | 4000K | 90lm/W | 1080lm | 140° | Double Copper | 8mm | 50mm |
| MS-LCOB65-480-12W-24V-08F0-90 | 480 | 24V | 12W | ≤3 | ≥90 | 6500K | 95lm/W | 1140lm | 140° | Double Copper | 8mm | 50mm |
Dimension Drawing:
12V:
24V:
Available Waterproof Grade:
IP20, IP65, IP67, IP68Send Message
