Product Feature:
- High density COB LEDs
- Linear lighting, without light spot, soft and uniform luminance
- High CRI, high brightness and high efficiency
- Reach ERP energy efficiency F class
- The width of FPC board is only 5mm, can be applicated in narrow aluminum profiles
- The weld pads are at the front side, easy to extend
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous
Efficacy | Luminance
Flux | Beam
Angle | PCB Layer | Width | Min.
Cutting |
|---|
| MS-LCOB30-480-8W-12V-05F0-90 | 480 | 12V | 8W | ≤3 | ≥90 | 3000K | 80lm/W | 640lm | 140° | Double
Copper | 5mm | 25mm |
| MS-LCOB40-480-8W-12V-05F0-90 | 480 | 12V | 8W | ≤3 | ≥90 | 4000K | 90lm/W | 720lm | 140° | Double
Copper | 5mm | 25mm |
| MS-LCOB65-480-8W-12V-05F0-90 | 480 | 12V | 8W | ≤3 | ≥90 | 6500K | 95lm/W | 760lm | 140° | Double
Copper | 5mm | 25mm |
| MS-LCOB30-480-8W-24V-05F0-90 | 480 | 24V | 8W | ≤3 | ≥90 | 3000K | 80lm/W | 640lm | 140° | Double
Copper | 5mm | 50mm |
| MS-LCOB40-480-8W-24V-05F0-90 | 480 | 24V | 8W | ≤3 | ≥90 | 4000K | 90lm/W | 720lm | 140° | Double
Copper | 5mm | 50mm |
| MS-LCOB65-480-8W-24V-05F0-90 | 480 | 24V | 8W | ≤3 | ≥90 | 6500K | 95lm/W | 760lm | 140° | Double
Copper | 5mm | 50mm |
Dimension Drawing:
12V:
24V:
Available Waterproof Grade:
IP20
Related Products
Model NO. MS-LCOBX-320-6W-12/24V-05F0-90
Wechat scan code or copy link mobile phone open
X

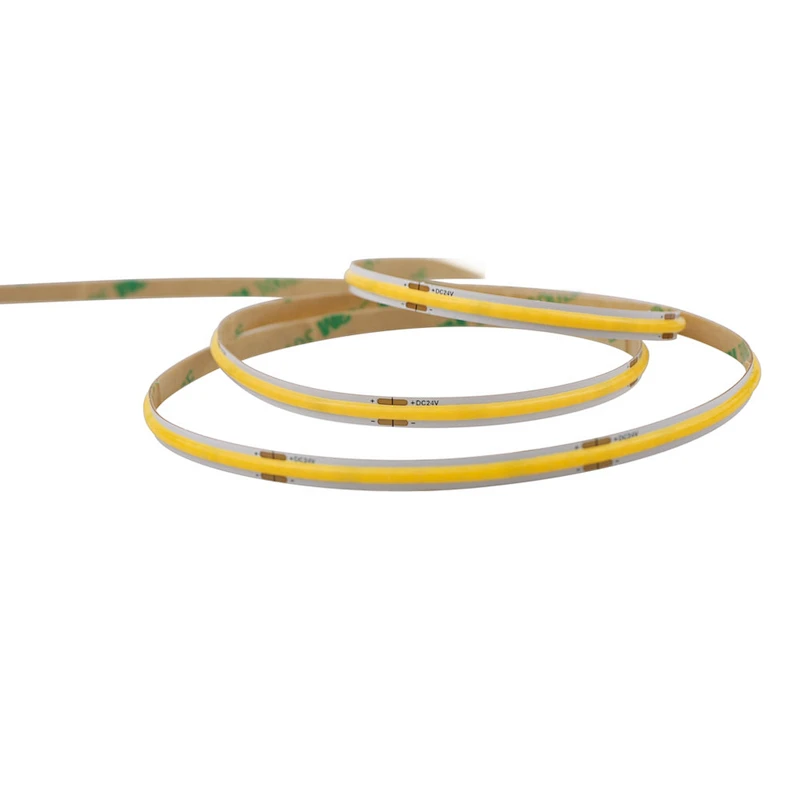

480LED 5mm width COB Strip Light
MS-LCOBX-480-8W-12/24V-05F0-90
Super Slim Flexible COB Strip 5mm FPC board width

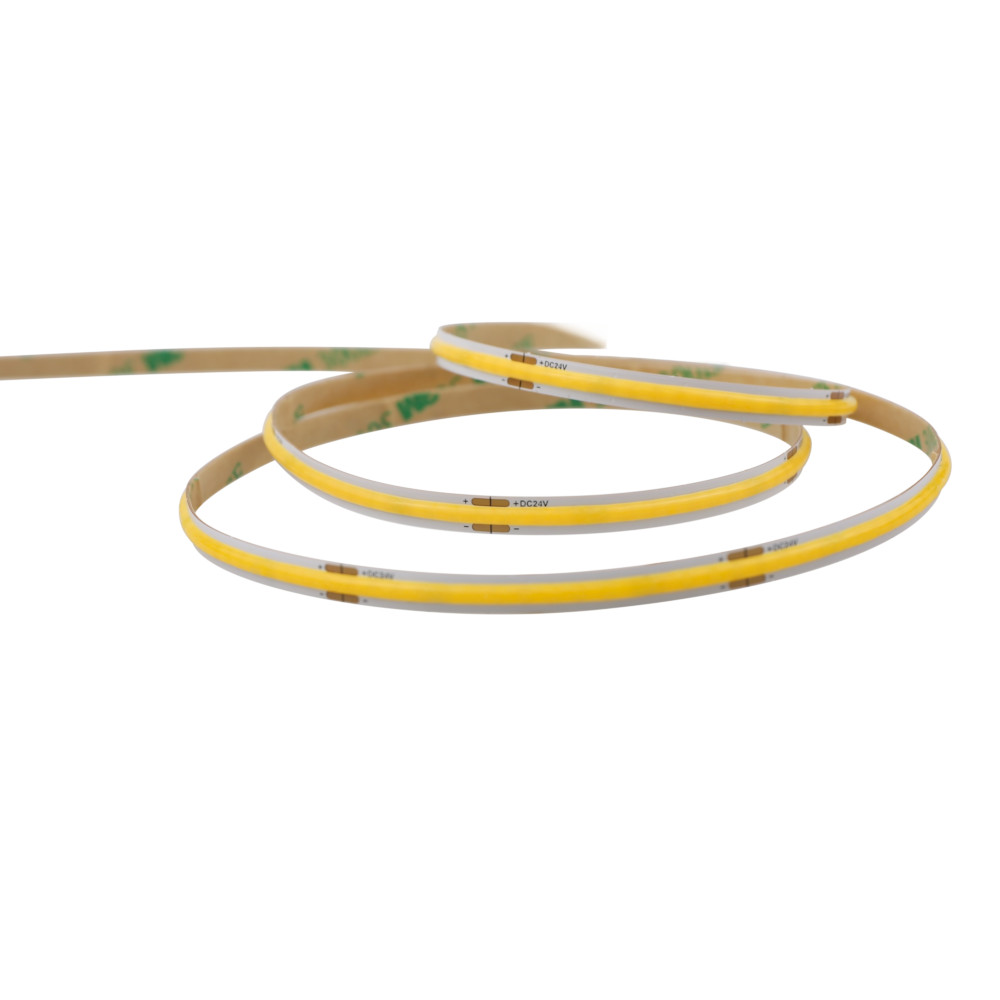

480LED 5mm width COB Strip Light
