Product Feature:
- High density COB LEDs
- Linear lighting, without light spot, soft and uniform luminance
- High CRI, high lumen and high efficiency
- Reach ERP energy efficiency F class
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous
Efficacy | Luminance
Flux | Beam
Angle | PCB Layer | Width | Min.
Cutting |
|---|
| MS-LCOB30-480-15W-12V-10F0-90 | 480 | 12V | 15W | ≤3 | ≥90 | 3000K | 80lm/W | 1200lm | 140° | Double
Copper | 10mm | 25mm |
| MS-LCOB40-480-15W-12V-10F0-90 | 480 | 12V | 15W | ≤3 | ≥90 | 4000K | 90lm/W | 1350lm | 140° | Double
Copper | 10mm | 25mm |
| MS-LCOB65-480-15W-12V-10F0-90 | 480 | 12V | 15W | ≤3 | ≥90 | 6500K | 95lm/W | 1420lm | 140° | Double
Copper | 10mm | 25mm |
| MS-LCOB30-480-15W-24V-10F0-90 | 480 | 24V | 15W | ≤3 | ≥90 | 3000K | 80lm/W | 1200lm | 140° | Double
Copper | 10mm | 50mm |
| MS-LCOB40-480-15W-24V-10F0-90 | 480 | 24V | 15W | ≤3 | ≥90 | 4000K | 90lm/W | 1350lm | 140° | Double
Copper | 10mm | 50mm |
| MS-LCOB65-480-15W-24V-10F0-90 | 480 | 24V | 15W | ≤3 | ≥90 | 6500K | 95lm/W | 1420lm | 140° | Double
Copper | 10mm | 50mm |
Dimension Drawing:

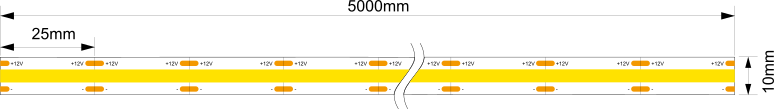

12V:

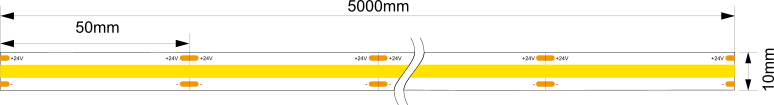

24V:
Available Waterproof Grade:
IP20
Wechat scan code or copy link mobile phone open
X

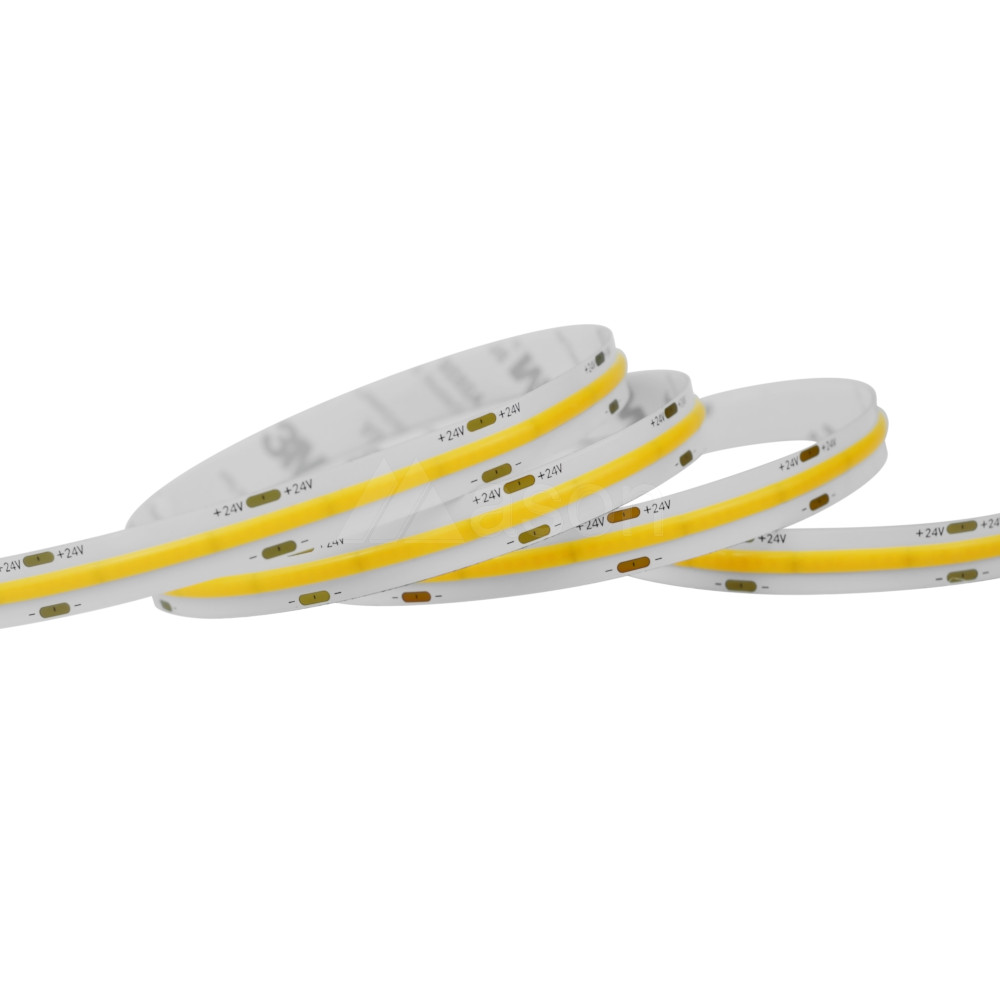

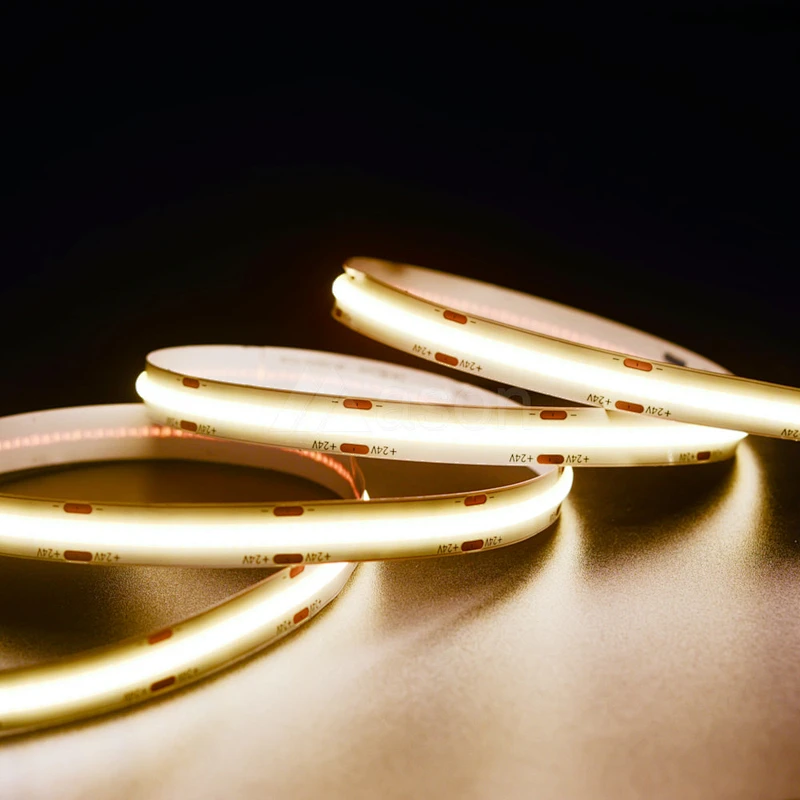

480LED 10mm width COB Strip Light
MS-LCOBX-480-15W-12/24V-10F0-90
High Lumen, Super Bright 480LED Flexible COB Strip Light 12V 24V 10mm not light spot no dark area
480LED 10mm width COB Strip Light
MS-LCOBX-480-15W-12/24V-10F0-90
High Lumen, Super Bright 480LED Flexible COB Strip Light 12V 24V 10mm not light spot no dark area
