Product Feature:
- High density COB LEDs
- Linear lighting, without light spot, soft and uniform luminance
- High light efficiency, reach ERP energy efficiency class C
- No harmful blue light
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
- The input voltage cann't be lower than 23.5V, otherwise the strip light will not work.
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous
Efficacy | Luminance
Flux | Beam
Angle | PCB Layer | Width | Min.
Cutting |
|---|
| MS-COB30-432-4.5W-24V-08F0-90 | 432 | 24V | 4.5W | ≤5 | 90 | 3000K | 160lm/W | 720lm | 140° | Double
Copper | 8mm | 41.7mm |
| MS-COB40-432-4.5W-24V-08F0-90 | 432 | 24V | 4.5W | ≤5 | 90 | 4000K | 170lm/W | 760lm | 140° | Double
Copper | 8mm | 41.7mm |
| MS-COB65-432-4.5W-24V-08F0-90 | 432 | 24V | 4.5W | ≤5 | 90 | 6500K | 175lm/W | 780lm | 140° | Double
Copper | 8mm | 41.7mm |

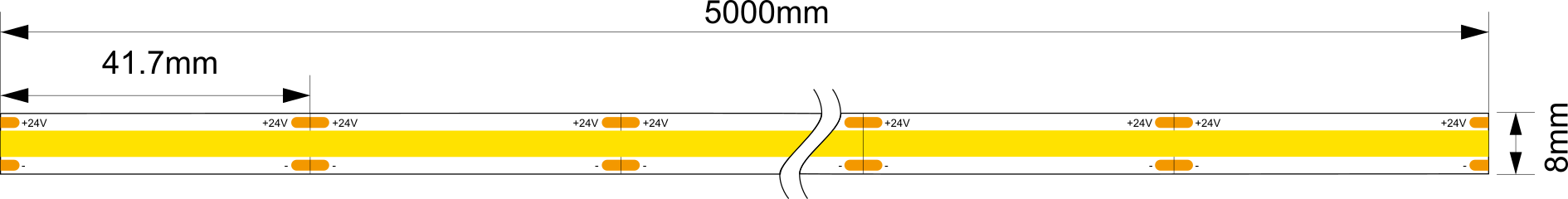

Dimension Drawing:
24V:
Available Waterproof Grade:
IP20, IP65, IP67, IP68
Related Products
Model NO. MS-COBX-480H-9.6W-24V-08F0-90
Wechat scan code or copy link mobile phone open
X

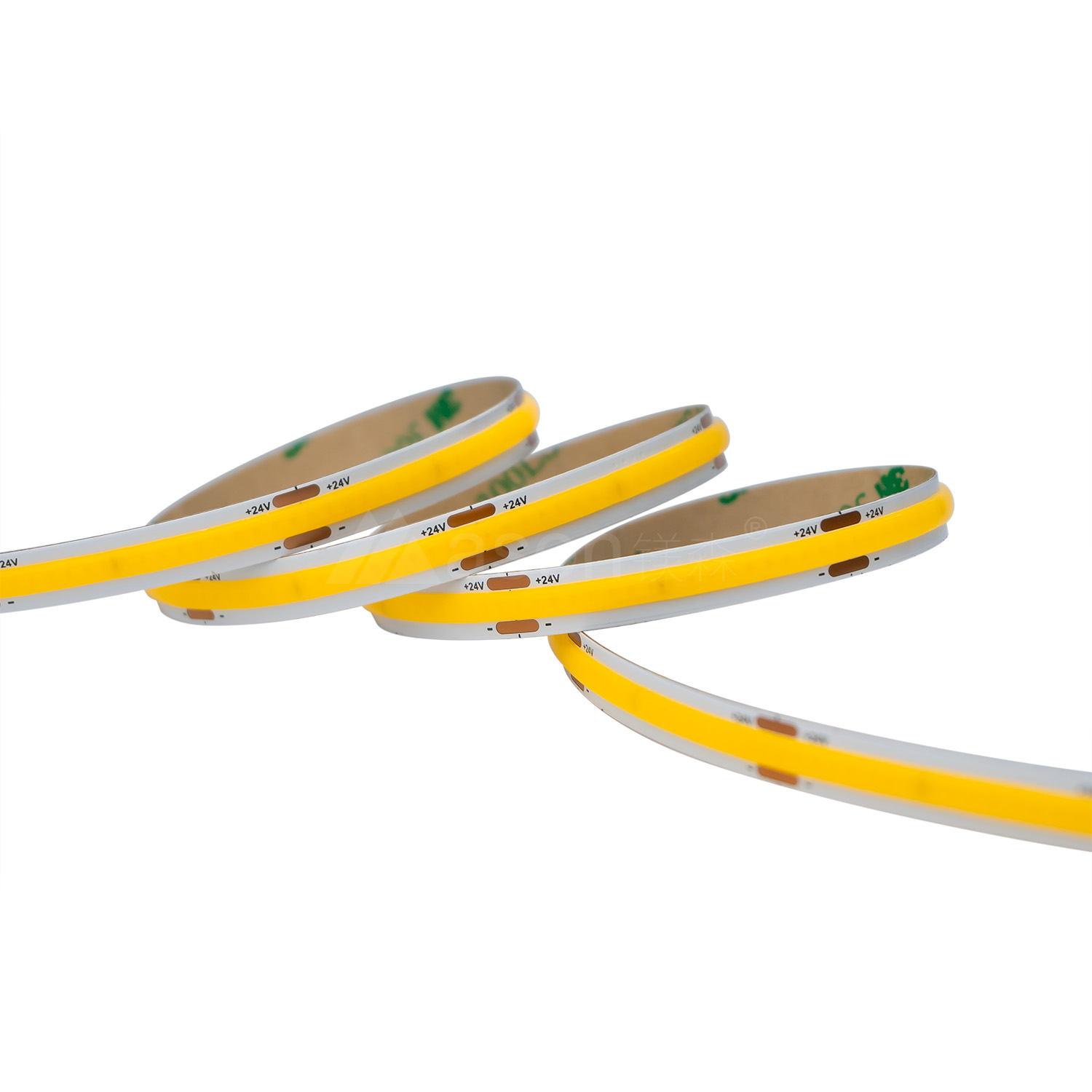

432LED 8mm width COB Strip Light
