Product Feature:
- High density COB LEDs
- Linear lighting, without light spot, soft and uniform luminance
- High CRI, high brightness and high efficiency
- Reach ERP energy efficiency F class
- 24V DC COB strip
- Special IC design, 25 meter strip working when one end power
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous
Efficacy | Luminance
Flux | Beam
Angle | PCB Layer | Width | Min.
Cutting |
|---|
| MS-LCOB30-420-8W-24V-10F0-80 | 420 | 24V | 8W | ≤3 | ≥80 | 3000K | 90lm/W | 720lm | 140° | Double
Copper | 10mm | 33.3mm |
| MS-LCOB40-420-8W-24V-10F0-80 | 420 | 24V | 8W | ≤3 | ≥80 | 4000K | 100lm/W | 800lm | 140° | Double
Copper | 10mm | 33.mm |
| MS-LCOB65-420-8W-24V-10F0-80 | 420 | 24V | 8W | ≤3 | ≥80 | 6500K | 105lm/W | 840lm | 140° | Double
Copper | 10mm | 33.mm |

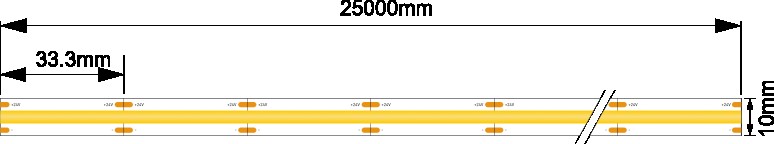

Dimension Drawing:
24V:
Available Waterproof Grade:
IP20, IP65
Related Products

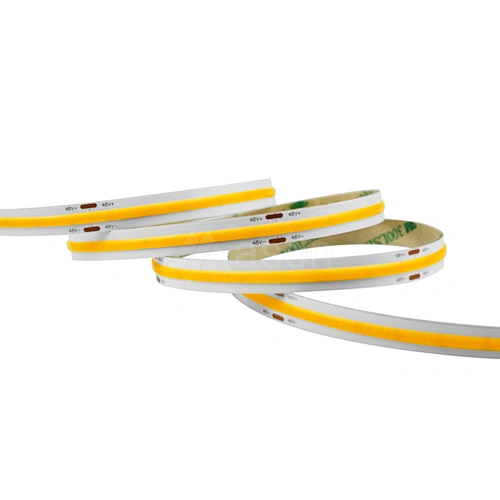

Model NO. MS-LCOBX-480-6W-48V-10F0-90
Wechat scan code or copy link mobile phone open
X

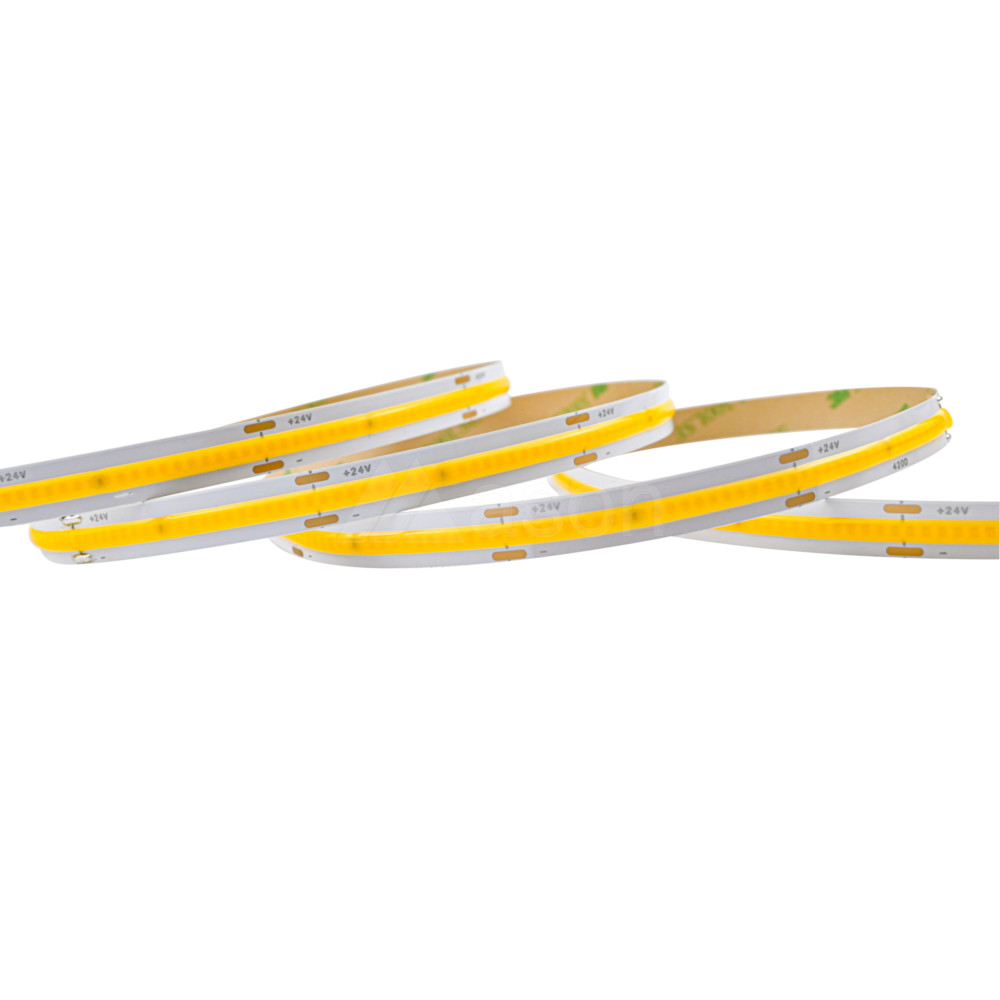

24V 420LED 10mm width COB Strip Light
